774LFL双卡套接头
您的位置：首页-> 产品介绍->双卡套接头->774LFL双卡套接头
 .jpg)
点击放大查看
点击放大查看

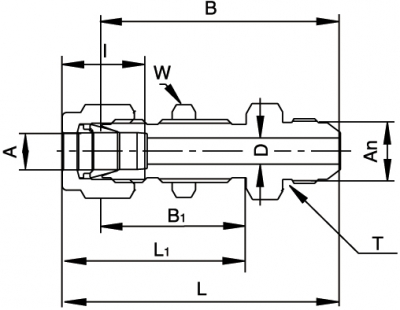

774LFL - Let-Lok to AN Bulkhead Union (Inch) )
Part
Description |
A |
An |
D |
W |
B |
B1 |
L |
L1 |
Tstraight |
Panel Hole Drill Size |
Max Panel Thickness |
I |
| in |
mm |
in |
mm |
in |
mm |
in |
mm |
in |
mm |
in |
mm |
in |
mm |
in |
mm |
|
in |
mm |
in |
mm |
in |
mm |
| 774LFL SS 1/4 X 1/4 |
1/4 |
6.35 |
1/4 |
6.35 |
0.19 |
4.82 |
5/8 |
15.87 |
1.83 |
46.48 |
1.03 |
26.16 |
2.12 |
53.84 |
1.32 |
33.52 |
7/16-20 |
19/64 |
11.50 |
11.50 |
10.16 |
0.6 |
15.2 |
| 774LFL SS 3/8 X 3/8 |
3/8 |
9.52 |
3/8 |
9.52 |
0.28 |
7.11 |
3/4 |
19.05 |
1.96 |
49.78 |
1.16 |
29.46 |
2.25 |
57.15 |
1.45 |
36.83 |
9/16-18 |
37/64 |
14.68 |
14.68 |
11.17 |
0.66 |
16.8 |
| 774LFL SS 1/2 X 1/2 |
1/2 |
12.70 |
1/2 |
12.70 |
0.39 |
9.90 |
15/16 |
23.81 |
2.19 |
55.63 |
1.25 |
31.75 |
2.59 |
65.79 |
1.65 |
41.91 |
3/4-16 |
49/64 |
19.45 |
19.45 |
12.70 |
0.90 |
22.9 |
| 774LFL SS 1 X 1 |
1 |
25.40 |
1 |
25.40 |
0.84 |
21.33 |
1-5/8 |
41.27 |
3/16 |
80.26 |
1.78 |
45.21 |
3.64 |
92.46 |
2.26 |
57.4 |
15/16-12 |
1-21/64 |
33.73 |
33.73 |
19.05 |
1.23 |
31.2 |
|
