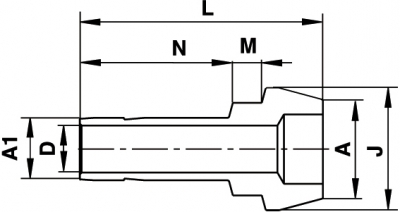

767LM -
Reducing Port Connector (Inch)
Part
Description |
A |
A1 |
D |
N |
L |
J |
M |
| in |
mm |
in |
mm |
in |
mm |
in |
mm |
in |
mm |
in |
mm |
in |
mm |
| 767LM SS 1/8 X1/16 |
1/8 |
3.17 |
1/16 |
1.58 |
0.03 |
0.76 |
0.34 |
8.64 |
0.68 |
17.27 |
0.24 |
6.10 |
0.08 |
2.03 |
| 767LM SS 1/4 X1/16 |
1/4 |
6.35 |
1/16 |
1.58 |
0.03 |
0.76 |
0.34 |
8.64 |
0.71 |
18.03 |
0.37 |
9.40 |
0.14 |
3.55 |
| 767LM SS 1/4 X 1/8 |
1/4 |
6.35 |
1/8 |
3.17 |
0.09 |
2.28 |
0.53 |
13.46 |
0.89 |
22.60 |
0.37 |
9.40 |
0.13 |
3.30 |
| 767LM SS 3/8 X 1/8 |
3/8 |
9.52 |
1/8 |
3.17 |
0.09 |
2.28 |
0.53 |
13.46 |
0.91 |
23.11 |
0.50 |
12.70 |
0.15 |
3.81 |
| 767LM SS 3/8 X 1/4 |
3/8 |
9.52 |
1/4 |
6.35 |
0.19 |
4.82 |
0.62 |
15.75 |
0.98 |
24.90 |
0.50 |
12.70 |
0.13 |
3.30 |
| 767LM SS 1/2 X 1/4 |
1/2 |
12.70 |
1/4 |
6.35 |
0.19 |
4.82 |
0.62 |
15.75 |
1.15 |
29.21 |
0.62 |
15.75 |
0.15 |
3.81 |
| 767LM SS 1/2 X 3/8 |
1/2 |
12.70 |
3/8 |
9.52 |
0.28 |
7.11 |
0.69 |
17.52 |
1.20 |
30.48 |
0.62 |
15.75 |
0.13 |
3.30 |
| 767LM SS 3/4 X 1/2 |
3/4 |
19.05 |
1/2 |
12.70 |
0.39 |
9.90 |
0.91 |
23.11 |
1.44 |
36.58 |
0.87 |
22.10 |
0.15 |
3.81 |
767LM -Reducing Port Connector (Metric)
Part
Description |
A |
A1 |
D |
N |
L |
J |
M |
| mm |
mm |
mm |
mm |
mm |
mm |
mm |
| 767LM SS 6 MMX3 MM |
6 |
3 |
2.2 |
13.5 |
22.6 |
9.0 |
3.2 |
| 767LM SS 8 MMX6 MM |
8 |
6 |
4.6 |
15.7 |
24.7 |
11.0 |
3.1 |
| 767LM SS 10MMX6 MM |
10 |
6 |
4.6 |
15.7 |
25.0 |
13.1 |
3.4 |
| 767LM SS 10MMX8 MM |
10 |
8 |
6.4 |
16.8 |
25.8 |
13.1 |
3.1 |
| 767LM SS 12MMX6 MM |
12 |
6 |
4.6 |
15.7 |
29.1 |
15.0 |
3.6 |
| 767LM SS 12MMX8 MM |
12 |
8 |
6.4 |
16.8 |
29.8 |
15.0 |
3.4 |
| 767LM SS 12MMX10MM |
12 |
10 |
7.7 |
17.5 |
30.4 |
15.0 |
3.1 |
| 767LM SS 16MMX12MM |
16 |
12 |
9.1 |
23.1 |
36.2 |
19.0 |
3.4 |
|
