762LFL双卡套接头
您的位置：首页-> 产品介绍->双卡套接头->762LFL双卡套接头
 .jpg)
点击放大查看
点击放大查看

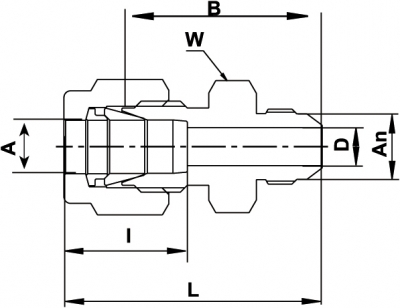

762LFL -
Let-Lok to AN Union Tube to Tube (Inch)
Part
Description |
A |
An |
D |
W |
B |
L |
I |
Tstraight |
| in |
mm |
in |
mm |
in |
mm |
in |
mm |
in |
mm |
in |
mm |
in |
mm |
|
| 762LFL SS 1/16X 1/8 |
1/16 |
1.58 |
1/8 |
3.17 |
0.05 |
1.27 |
7/16 |
11.11 |
0.92 |
23.36 |
1.07 |
27.18 |
0.43 |
10.92 |
5/16-24 |
| 762LFL SS 1/8 X 1/8 |
1/8 |
3.17 |
1/8 |
3.17 |
0.06 |
1.52 |
7/16 |
11.11 |
1.01 |
25.65 |
1.27 |
32.26 |
0.60 |
15.24 |
5/16-24 |
| 762LFL SS 1/8 X 1/4 |
1/8 |
3.17 |
1/4 |
6.35 |
0.09 |
2.28 |
1/2 |
12.70 |
1.12 |
28.44 |
1.38 |
35.05 |
0.60 |
15.24 |
7/16-20 |
| 762LFL SS 1/4 X 1/4 |
1/4 |
6.35 |
1/4 |
6.35 |
6.17 |
4.31 |
1/2 |
12.70 |
1.19 |
30.22 |
1.48 |
37.59 |
0.70 |
17.78 |
1/16-20 |
| 762LFL SS 3/8 X 1/4 |
3/8 |
9.52 |
1/4 |
6.35 |
0.17 |
4.31 |
5/8 |
15.87 |
1.27 |
32.25 |
1.56 |
39.62 |
0.76 |
19.30 |
7/16-20 |
| 762LFL SS 3/8 X 3/8 |
3/8 |
9.52 |
3/8 |
9.52 |
0.28 |
7.11 |
5/8 |
15.87 |
1.27 |
32.25 |
1.56 |
39.62 |
0.76 |
19.30 |
9/16-18 |
| 762LFL SS 1/2 X 1/2 |
1/2 |
12.70 |
1/2 |
12.70 |
0.39 |
9.90 |
13/16 |
20.63 |
1.41 |
35.8 |
1.80 |
45.72 |
0.86 |
21.84 |
3/4-16 |
| 762LFL SS 3/4 X 3/4 |
3/4 |
19.05 |
3/4 |
19.05 |
0.61 |
15.49 |
1-1/8 |
28.57 |
1.70 |
43.18 |
2.10 |
53.34 |
0.86 |
21.84 |
11/16-12 |
| 762LFL SS 1 X 1 |
1 |
25.40 |
1 |
25.40 |
0.84 |
21.34 |
1-3/8 |
34.92 |
1.94 |
49.28 |
2.42 |
61.47 |
1.04 |
26.42 |
15/16-12 |
|
