760LI双卡套接头
您的位置：首页-> 产品介绍->双卡套接头->760LI双卡套接头
 .jpg)
点击放大查看
点击放大查看

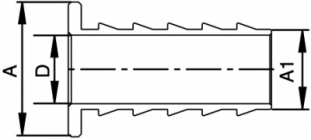

760LI- Tube
Insert (Inch)
Part
Description |
A |
A1 |
D |
| in |
mm |
in |
mm |
in |
mm |
| 760LI SS 1/4 X 1/8 |
1/4 |
6.35 |
1/8 |
3.17 |
0.09 |
2.28 |
| 760LI SS 1/4 X3/16 |
1/4 |
6.35 |
3/16 |
4.76 |
0.14 |
3.55 |
| 760LI SS 5/16X 1/8 |
5/16 |
7.93 |
1/8 |
3.17 |
0.09 |
2.28 |
| 760LI SS 3/8 X3/16 |
3/8 |
9.52 |
3/16 |
4.76 |
0.12 |
3.05 |
| 760LI SS 3/8 X 1/4 |
3/8 |
9.52 |
1/4 |
6.35 |
0.19 |
9.52 |
| 760LI SS 1/2 X 1/4 |
1/2 |
12.70 |
1/4 |
6.35 |
0.19 |
9.52 |
| 760LI SS 1/2 X 3/8 |
1/2 |
12.70 |
3/8 |
9.52 |
0.31 |
7.87 |
| 760LI SS 5/8 X 3/8 |
5/8 |
15.87 |
3/8 |
9.52 |
0.31 |
7.87 |
| 760LI SS 5/8 X 1/2 |
5/8 |
15.87 |
1/2 |
12.70 |
0.44 |
11.17 |
| 760LI SS 3/4 X 1/2 |
3/4 |
19.05 |
1/2 |
12.70 |
0.44 |
11.17 |
760LI-Tube
Insert (Metric)
Part
Description |
A |
A1 |
D |
| mm |
mm |
mm |
| 760LI SS 6 MMX4 MM |
6 |
4 |
2.8 |
| 760LI SS 8 MMX6 MM |
8 |
6 |
4.4 |
| 760LI SS 10MMX8 MM |
10 |
8 |
6.4 |
| 760LI SS 12MMX8 MM |
12 |
8 |
6.4 |
| 760LI SS 12MMX10MM |
12 |
10 |
8.3 |
|
